J6-M型双隔膜报警计量泵

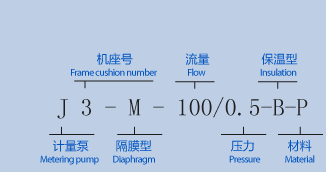

J6-M型双隔膜报警计量泵性能参数
| 型号 Type |
流量L/h Flow |
最高压力 Mpa Maxium pressure |
|
|---|---|---|---|
| 电机 Motor 11kW |
电机 Motor 18.5kW |
||
| J6-M-620/20(16) | 620 | 16 | 25 |
| J6-M-780/20(12.5) | 780 | 12.5 | 20 |
| J6-M-1000/16(10) | 1000 | 10 | 16 |
| J6-M-1250/12.5(8) | 1250 | 8 | 12.5 |
| J6-M-1600/10(6.3) | 1600 | 6.3 | 10 |
| J6-M-2000/8(5) | 2000 | 5 | 8 |
| J6-M-2500/6.3(4) | 2500 | 4 | 6.3 |
| J6-M-3200/5(3.2) | 3200 | 3.2 | 5 |
| J6-M-4000/4(2.5) | 4000 | 2.5 | 4 |
| J6-M-5000/3.2(2) | 5000 | 2 | 3.2 |
| J6-M-6300/2.5(1.6) | 6300 | 1.6 | 2.5 |
| J6-M-8000/2(1.25) | 8000 | 1.25 | 2 |
| J6-M-10000/1.6(1) | 10000 | 1 | 1.6 |
| J6-M-12500/1.25(0.8) | 12500 | 0.8 | 1.25 |
| J6-M-16000/1.0(0.6) | 16000 | 0.6 | 1.0 |
J6-M型双隔膜报警计量泵安装尺寸
| 型号 Type | A1 | A2 | B | C | D |
|---|---|---|---|---|---|
| J6-M-620/25(16) | 361 | 361 | 180 | DN32-PN260RFGB/T9119 | DN32-PN6RF(Rp)GB/T9119 |
| J6-M-780/20(12.5) | |||||
| J6-M-1000/16(10) | 361 | 361 | 180 | DN32-PN150RF(NPT)GB/T9119 | DN32-PN6RF(RP)GB/T9119 |
| J6-M-1250/12.5(8) | |||||
| J6-M-1600/10(6.3) | 311 | 311 | 180 | DN40-PN110RF(NPT)GB/T9119 | DN40-PN6RF(Rp)GB/T9119 |
| J6-M-2000/8(5) | |||||
| J6-M-2500/6.3(4) | 330 | 310 | 189 | DN50-PN50RF(NPT)GB/T9119 | DN50-PN6RF(Rp)GB/T9119 |
| J6-M-3200/5(3.2) | |||||
| J6-M-4000/4(2.5) | 389 | 329 | 210 | DN65-PN40RF(Rp)GB/T9119 | DN65-PN6RF(Rp)GB/T9119 |
| J6-M-5000/3.2(2) | |||||
| J6-M-6300/2.5(1.6) | 391 | 391 | 242 | DN80-PN40RF(Rp)GB/T9119 | DN80-PN6RF(Rp)GB/T9119 |
| J6-M-8000/2(1.25) | |||||
| J6-M-10000/1.6(1) | 431 | 436 | 252 | DN100-PN40RF(Rp)GB/T9119 | DN100-PN6RF(Rp)GB/T9119 |
| J6-M-12500/1.25(0.8) | |||||
| J6-M-16000/1.0(0.6) | 436 | 436 | 252 | DN100-PN40RF(Rp)GB/T9119 | DN100-PN6RF(Rp)GB/T9119 |

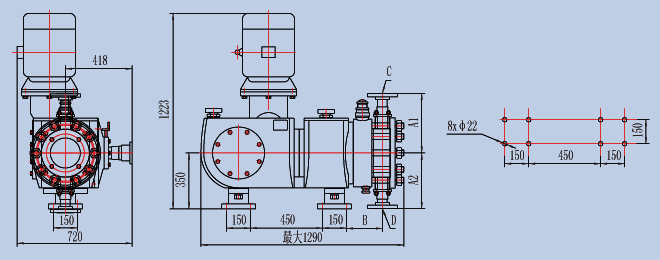

J6-M型双隔膜报警计量泵安装图
