J2-M型双隔膜报警计量泵
J2-M型双隔膜报警计量泵性能参数
| 型号 Type |
流量L/h Flow |
最高压力 Mpa Maxium pressure |
入出管联接 inlet/outlet pipe connections |
||
|---|---|---|---|---|---|
| 电机 Motor 0.37kW |
电机 Motor 0.55kW |
电机 Motor 0.75kW |
|||
| J2-M-5/16 | 5 | 16 | Φ14(外径)x3管 | ||
| J2-M-9/10 | 9 | 10 | Φ14(外径)x3管 | ||
| J2-M-15/6.3 | 15 | 6.3 | GB/T9119 DN18PN50RF(NPT) | ||
| J2-M-18/16(6.3) | 18 | 6.3 | 16 | Φ14(外径)x3管 | |
| J2-M-22/12.5(5) | 22 | 5 | 12.5 | Φ14(外径)x3管 | |
| J2-M-25/4 | 25 | 4 | Φ18(外径)x3管 | ||
| J2-M-32/10(4) | 32 | 4 | 10 | Φ14(外径)x3管 | |
| J2-M-40/8(3.2) | 40 | 3.2 | 8 | Φ14(外径)x3管 | |
| J2-M-40/2.5 | 40 | 2.5 | Φ15(外径)x3管 | ||
| J2-M-50/6.3(2.5) | 50 | 2.5 | 6.3 | GB/T9119 DN18PN50RF(NPT) | |
| J2-M-63/5(2) | 63 | 2 | 5 | GB/T9119 DN18PN50RF(NPT) | |
| J2-M-80/4(1.6) | 80 | 1.6 | 4 | GB/T9119 DN18PN40RF(Rp) | |
| J2-M-100/3.2(1.25) | 100 | 1.25 | 3.2 | GB/T9119 DN18PN40RF(Rp) | |
| J2-M-125/2.5(1) | 125 | 1 | 2.5 | GB/T9119 DN20PN40RF(Rp) | |
| J2-M-160/2(0.8) | 160 | 0.8 | 2 | GB/T9119 DN20PN40RF(Rp) | |
| J2-M-200/1.6(0.63) | 200 | 0.63 | 1.6 | GB/T9119 DN20PN40RF(Rp) | |
| J2-M-250/1.3 | 250 | 1.3 | GB/T9119 DN20PN40RF(Rp) | ||
| J2-M-320/1 | 320 | 1 | GB/T9119 DN20PN40RF(Rp) | ||
| J2-M-400/0.8 | 400 | 0.8 | GB/T9119 DN20PN40RF(Rp) | ||
| J2-M-500/0.63 | 500 | 0.63 | GB/T9119 DN25PN40RF(Rp) | ||
| J2-M-630/0.5 | 630 | 0.5 | GB/T9119 DN25PN40RF(Rp) | ||
| J2-M-800/0.4 | 800 | 0.4 | GB/T9119 DN32PN40RF(Rp) | ||
| J2-M-1000/0.32 | 1000 | 0.32 | GB/T9119 DN32PN40RF(Rp) | ||
J2-M型双隔膜报警计量泵安装尺寸
| 型号 Type | A1 | A2 | B | C |
|---|---|---|---|---|
| J2-M-5/16 | 204 | 204 | 147 | Φ14（外径)x3管 |
| J2-M-9/10 | 198 | 198 | 147 | |
| J2-M-15/6.3 | 202 | 202 | 148 | Φ18（外径)x3管 |
| J2-M-18/16(6.3) | 204 | 204 | 147 | Φ14（外径)x3管 |
| J2-M-22/12.5(5) | ||||
| J2-M-25/4 | 202 | 202 | 148 | Φ18（外径)x3管 |
| J2-M-32/10(4) | 198 | 198 | 147 | Φ14（外径)x3管 |
| J2-M-40/8(3.2) | ||||
| J2-M-40/2.5 | 245 | 175 | 156 | DN15-PN40 RFGB/T9119 |
| J2-M-50/6.3(2.5) | 202 | 202 | 148 | Φ18（外径)x3管 |
| J2-M-63/5(2) | ||||
| J2-M-80/4(1.6) | 239 | 169 | 155 | Φ18（外径)x3管 |
| J2-M-100/3.2(1.25) | ||||
| J2-M-125/2.5(1) | 239 | 169 | 155 | DN15-PN40RFGB/T9119 |
| J2-M-160/2(0.8) | ||||
| J2-M-200/1.6(0.63) | 245 | 175 | 156 | |
| J2-M-250/1.3 | ||||
| J2-M-320/1 | 248 | 198 | 165 | DN20-PN40 RFGB/T9119 |
| J2-M-400/0.8 | ||||
| J2-M-500/0.63 | 266 | 216 | 179 | DN25-PN6 RFGB/T9119 |
| J2-M-630/0.5 | ||||
| J2-M-800/0.4 | 272 | 252 | 179 | DN32-PN6 RFGB/T9119 |
| J2-M-1000/0.32 |

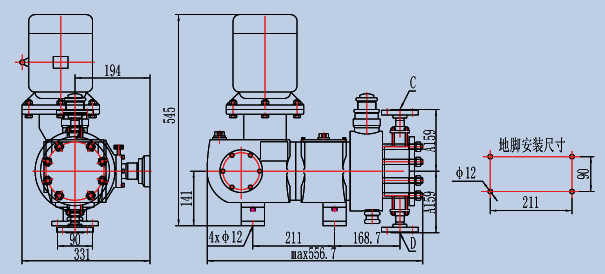

J2-M型双隔膜报警计量泵安装图
